金属接头
应用领域：航空航天领域、人工智能机器人

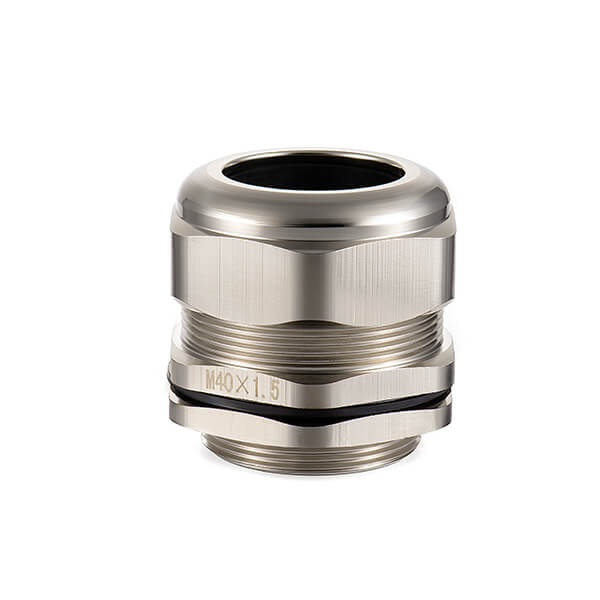

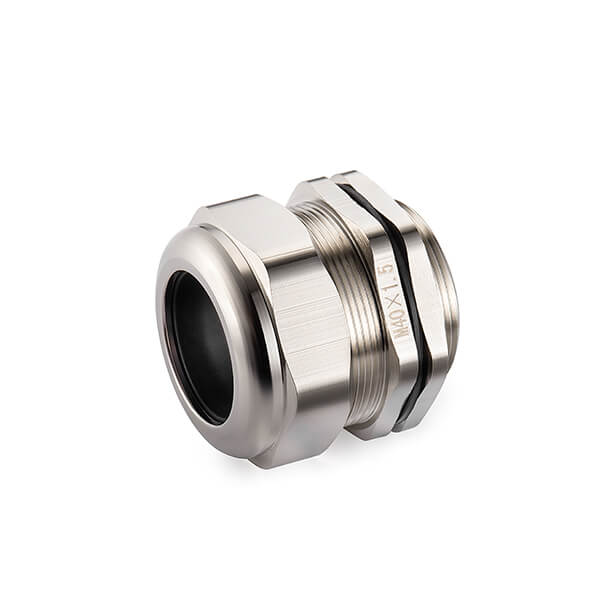

| PJ-A型防水黄铜电缆接头 | ||||||
| 公制牙 | ||||||

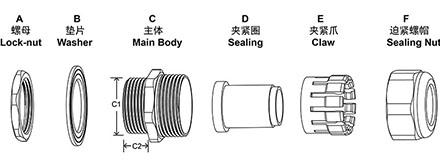

| 螺牙规格 | 规格 | 电缆范围(mm) | 螺纹外径(mm) | 螺纹长度(mm) | 扳手径(mm) | 包装(个/包） |
| M8*1.25 | M8-3.8 | 2-3.8 | 8 | 5.5 | 13/13 | 50 |
| M10*1.0 | M10-6.5 | 3-6.5 | 10 | 6.5 | 14/14 | 50 |
| M12S*1.25 | M12S-6.5 | 3-6.5 | 12 | 7 | 14/14 | 50 |
| M12*1.5 | M12-8 | 4-8 | 12 | 8 | 17/17 | 50 |
| M16S*1.5 | M16S-8 | 4-8 | 16 | 9 | 18/18 | 50 |
| M16*1.5 | M16-10 | 5-10 | 16 | 9 | 22/22 | 50 |
| M20S*1.5 | M20S-12 | 6-12 | 20 | 9.5 | 24/24 | 50 |
| M20*1.5 | M20-14 | 10-14 | 20 | 9.5 | 25/25 | 50 |
| M25*1.5 | M25-18 | 13-18 | 25 | 12 | 30/30 | 50 |
| M32*1.5(2) | M32-25 | 18-25 | 32 | 12.5 | 40/40 | 50 |
| M40*1.5(2) | M40-30 | 24-30 | 40 | 15 | 50/50 | 50 |
| M50*1.5(2) | M50-41 | 32-41 | 50 | 15 | 59/59 | 50 |
| M63*1.5(2) | M63-44 | 37-44 | 63 | 17 | 67/65 | 50 |
| M63*1.5(2) | M64-51 | 44-51 | 63 | 17 | 73/73 | 50 |
| 德制牙 | ||||||
| 螺牙规格 | 规格 | 电缆范围(mm) | 螺纹外径(mm) | 螺纹长度(mm) | 扳手径(mm) | 包装(个/包） |
| PG7S | PG7S-6.5 | 3-6.5 | 12.5 | 7 | 14/14 | 50 |
| PG7 | PG7-8 | 4-8 | 12.5 | 8 | 17/17 | 50 |
| PG9 | PG9-8 | 4-8 | 15.2 | 8 | 18/18 | 50 |
| PG11 | PG11-10 | 5-10 | 18.6 | 9 | 22/22 | 50 |
| PG13.5 | PG13.5-12 | 6-12 | 20.4 | 9.5 | 24/24 | 50 |
| PG16 | PG16-14 | 10-14 | 22.5 | 9.5 | 25/25 | 50 |
| PG21 | PG21-18 | 13-18 | 28.3 | 12 | 30/30 | 50 |
| PG29 | PG29-25 | 18-25 | 37 | 12.5 | 40/40 | 50 |
| PG36 | PG36-30 | 25-30 | 47 | 15 | 50/50 | 50 |
| PG42 | PG42-41 | 32-41 | 54 | 15 | 59/59 | 50 |
| PG48 | PG48-44 | 37-45 | 59.3 | 17 | 67/65 | 50 |
| 英制牙 | ||||||
| 螺牙规格 | 规格 | 电缆范围(mm) | 螺纹外径(mm) | 螺纹长度(mm) | 扳手径(mm) | 包装(个/包） |
| G1/4 | G1/4 | 3-5.3 | 13.1 | 8 | 17/17 | 50 |
| G1/4 | G1/4 | 4.5-7.8 | 13.1 | 8 | 17/17 | 50 |
| G3/8 | G3/8 | 4-7 | 16.6 | 9 | 22/22 | 50 |
| G3/8 | G3/8 | 6-10 | 16.6 | 9 | 22/22 | 50 |
| G1/2 | G1/2 | 7-11 | 20.9 | 9.5 | 26/26 | 50 |
| G1/2 | G1/2 | 9-14 | 20.9 | 9.5 | 26/26 | 50 |
| G3/4 | G3/4 | 12-16 | 26.4 | 12 | 32/32 | 50 |
| G3/4 | G3/4 | 14-18 | 26.4 | 12 | 32/32 | 50 |
| G1 | G1 | 16-22 | 33.2 | 12.5 | 41/41 | 50 |
| G1 | G1 | 18-25 | 33.2 | 12.5 | 41/41 | 50 |
| G1-1/4 | G1-1/4 | 21-25 | 41.9 | 15 | 50/50 | 50 |
| G1-1/4 | G1-1/4 | 24-30 | 41.9 | 15 | 50/50 | 50 |
| G1-1/2 | G1-1/2 | 26-30 | 47.8 | 15 | 60/60 | 50 |
| G1-1/2 | G1-1/2 | 31-41 | 47.8 | 15 | 60/60 | 50 |
| G2 | G2 | 40-46 | 59.6 | 15 | 73/73 | 50 |
| G2 | G2 | 44-51 | 59.6 | 15 | 73/73 | 50 |
| G2-1/2 | G2-1/2 | 50-56 | 75.1 | 15 | 88/85 | 50 |
| G2-1/2 | G2-1/2 | 56-66 | 75.1 | 15 | 88/85 | 50 |
| 美制牙 | ||||||
| 螺牙规格 | 规格 | 电缆范围(mm) | 螺纹外径(mm) | 螺纹长度(mm) | 扳手径(mm) | 包装(个/包） |
| NPT3/8 | NPT3/8 | 4-7 | 17.055 | 13 | 22/22 | 50 |
| NPT3/8 | NPT3/8 | 6-10 | 17.055 | 13 | 22/22 | 50 |
| NPT1/2 | NPT1/2 | 7-11 | 21.2 | 13 | 26/26 | 50 |
| NPT1/2 | NPT1/2 | 9-14 | 21.2 | 13 | 26/26 | 50 |
| NPT3/4 | NPT3/4 | 12-16 | 26.5 | 14 | 32/32 | 50 |
| NPT3/4 | NPT3/4 | 14-18 | 26.5 | 14 | 32/32 | 50 |
| NPT1 | NPT1 | 16-22 | 33.2 | 15 | 41/41 | 50 |
| NPT1 | NPT1 | 18-25 | 33.2 | 15 | 41/41 | 50 |
| NPT1-1/4 | NPT1-1/4 | 21-25 | 41.9 | 15 | 50/50 | 50 |
| NPT1-1/4 | NPT1-1/4 | 24-30 | 41.9 | 15 | 50/50 | 50 |
PJA款大帽部分的六角对边相较常规款做了加宽设计，有利于加强扳手劲的力度，使锁水更加有力。
1.首先确定安装面板的孔径，并确定其是否属于攻牙孔。
2.对照技术参数表找到匹配的螺牙型号（如：M、PG、NPT、G螺牙）。
3.如果安装面板没有攻牙孔，那么只需要确定孔径即可。
4.加长款螺纹适用于厚的安装面板。
1.问：螺纹长度可以定定制吗？
答：可以。金属制品的外形和螺牙长度都可以定制，并无需开模（特殊形状除外），仅需提供3D和CAD图纸即可。
2.问：用于信号灯领域是否会影响磁场？
答：此款金属接头可搭配可与铠装导线配合使用，仅需在主体中间位置加置防磁波片即可达到电磁兼容抗电磁波的目的。
3.问：交期需要多久？
答：常规型号可在3-7个工作日内发货。定制型号根据订单数量而定。
