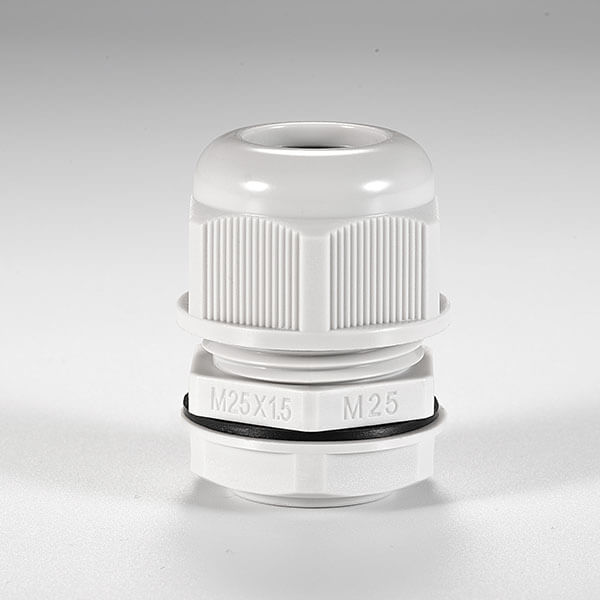

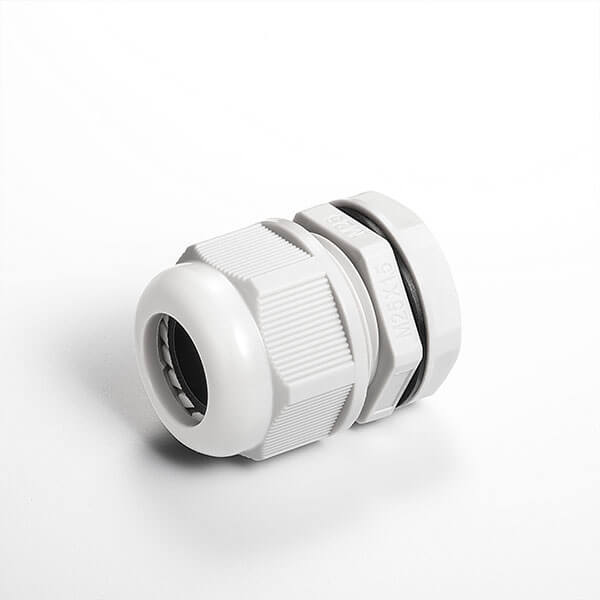

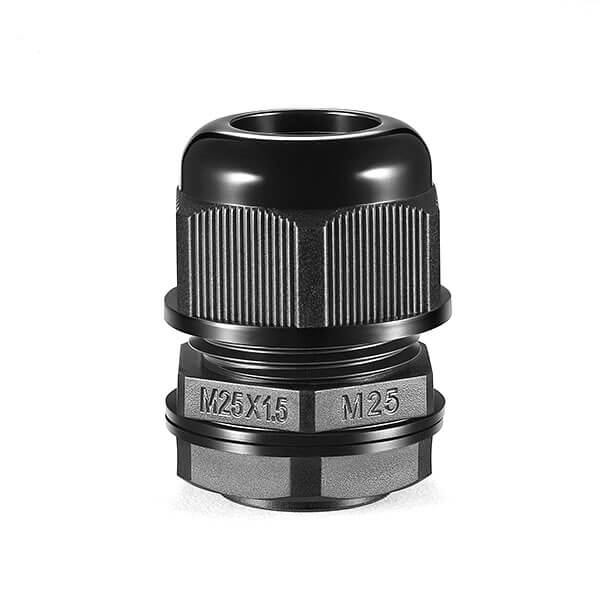

标准款尼龙接头

技术参数

螺牙规格

公制牙(Metric),PG牙,G(PF)牙。(螺牙可定制)

防水等级

IP68-10

工作温度

静态-40℃至100℃,或瞬间可耐热至120℃。动态-20℃至80℃,或瞬间可耐热至100℃.

产品特性

设计的夹紧圈与夹紧爪,迫紧螺帽带松紧扣,拧紧时会发出“咔嗒”声并防止其倒开,能牢牢地固定电缆,扩大夹紧电缆范围,抗拉力强,可防水,防尘,抗盐,耐弱酸,酒精,油,油脂及一般溶剂。

产品材质

A、C、E、F部分采用UL认可之尼龙PA66制成防火等级UL94V-2),可定制UL认可防火94V-0尼龙PA66材料。B、D部分采用三元乙丙(EPDM)耐候橡胶制成,可定制耐寒耐高温、耐化学等橡胶。

颜色

黑色,灰色,其他颜色可定制。

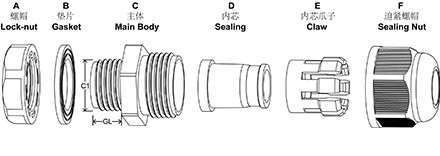

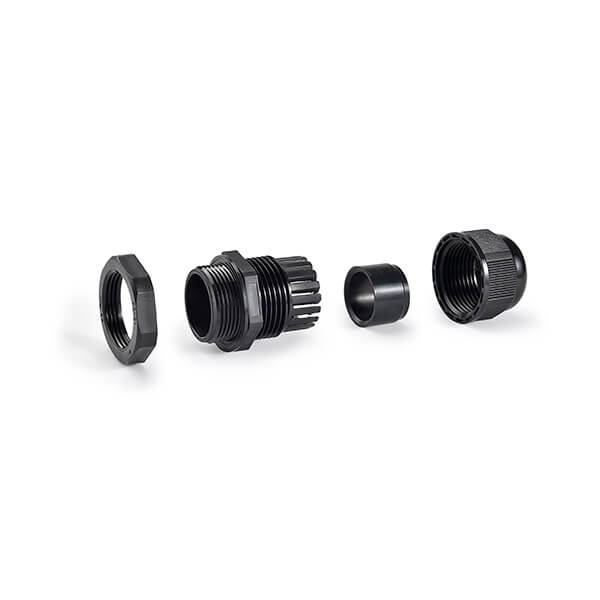

分解图


技术参数

尼龙电缆防水接头(A型分体)
公制牙
螺牙规格规格电缆范围螺纹外径螺纹长度扳手径包装
M12*1.5MGA12-5.53-6.5128.518/1950
MGA12-084-8128.518/1950
M16*1.5MGA16-7-ST4-7161022/2250
MGA16-10-ST6-10161022/2250
MGA16L-74-7161522/2250
MGA16L-106-10161522/2250
M20*1.5MGA20-11-ST6-11201027/2750
MGA20-14-ST8-14201027/2750
MGA20L-116-11201527/2750
MGA20L-148-14201527/2750
M25*1.5MGA25-16-ST12-16251233/3350
MGA25-18-ST13-18251233/3350
MGA25L-1612-16251533/3350
MGA25L-1813-18251533/3350
M32*1.5MGA32-2215-22321241/4220
MGA32-2518-25321241/4220
MGA32L-2215-22321541/4220
MGA32L-2518-25321541/4220
M40*1.5MGA40-2620-26402050/5210
MGA40-3124-31402050/5210
M50*1.5MGA50-3325-33502262/6210
MGA50-4131-41502262/6210
M63*1.5MGA63-4639-46632575/7510
MGA63-5144-51632575/7510
M75*2.0MGA75-5650-56752592/921
MGA75-6656-66752592/921
M90*2.0MGA90-6858-689025110/1101
MGA90-7766-779025110/1101
德制牙
螺牙规格规格电缆范围螺纹外径螺纹长度扳手径包装
PG7PGA7-5.53-5.512.5817/1950
PGA7-84-812.5817/1950
PG9PGA9-5.53-5.515.28.222/1950
PGA9-84-815.28.222/1950
PG11PGA11-74-718.61024/2250
PGA11-106-1018.61024/2250
PG13.5PGA13.5-95-920.41027/2450
PGA13.5-12.58-12.520.41027/2450
PG16PGA16-117-1122.51130/2750
PGA16-148-1422.51130/2750
PG21PGA21-1610-1628.31236/3350
PGA21-1812-1828.31236/3350
PG29PGA29-2215-22371246/4120
PGA29-2518-25371246/4120
PG36PGA36-2620-26471457/5210
PGA36-3124-31471457/5210
PG42PGA42-3325-33541564/6210
PGA42-4131-41541564/6210
PG48PGA48-4639-4659.318.270/7510
英制牙
螺牙规格规格电缆范围螺纹外径螺纹长度扳手径包装
G(PF)1/4"GA1/4-53-5.513.1578.519/1950
GA1/4-84-813.1578.519/1950
G(PF)3/8"GA3/8-74-716.6621022/2250
GA3/8-106-1016.6621022/2250
G(PF)1/2"GA1/2-95-920.9551027/2450
GA1/2-12.56-12.520.9551027/2450
G(PF)3/4"GA3/4-137-1326.4411236/3350
GA3/4-1813-1826.4411236/3350
G(PF)1"GA1-2115-2233.2491546/4120
GA1-2518-2533.2491546/4120
G(PF)1 1/4"GA1 1/4-25.517-25.541.911557/2210
GA1 1/4-3124-3141.911557/2210
G(PF)1 1/2"GA1 1/2-3325-33482260/6210
GA1 1/2-4131-41482260/6210
G(PF)2"GA2-4639-46602572/6510
GA2-5144-51602572/6510

分解图


技术参数

尼龙电缆防水接头(B型连体)
公制牙
螺牙规格规格电缆范围螺纹外径螺纹长度扳手径包装
M8*1MGB8-2.51-2.587.512/1350
MGB8-4.82-4.887.512/1350
M10*1.25MGB10-31-310815/1350
MGB10-63-610815/1350
M12*1.5MGB12S-31-3128.518/1550
MGB12S-6.53-6.5128.518/1550
MGB12SL-31-3121518/1550
MGB12SL-6.53-6.5121518/1550
MGB12-53-5.5128.518/1950
MGB12-84-8128.518/1950
MBG12L-53-5.5121518/1950
MGB12L-84-8121518/1950
M16*1.5MGB16S-53-5.5161022/1950
MGB16S-84-8161022/1950
MGB16SL-53-5.5161522/1950
MGB16SL-84-8161522/1950
MGB16-73-7161022/2250
MGB16-106-10161022/2250
MGB16L-73-7161522/2250
MGB16L-106-10161522/2250
M18*1.5MGB18-73-7181024/2250
MGB18-106-10181024/2250
MGB18L-73-7181524/2250
MGB18L-106-10181524/2250
M20*1.5MGB20S-95-9201027/2450
MGB20S-12.56-12.5201027/2450
MGB20SL-95-9201527/2450
MGB20SL-12.56-12.5201527/2450
MGB20-117-11201027/2750
MGB20-13.59-14201027/2750
MGB20L-117-11201527/2750
MGB20L-13.59-14201527/2750
M25*1.5MGB25S-115-11251233/2750
MGB25S-149-14251233/2750
MGB25-137-13251233/3350
MGB25-1813-18251233/3350
MGB25L-137-13251533/3350
MGB25L-1813-18251533/3350
M32*1.5MGB32-17.513-17.5321241/4220
MGB32-2518-25321241/4220
MGB32L-17.513-17.5321541/4220
MGB32L-2518-25321541/4220
M36*1.5MGB36-2214-22361245/4220
MGB36-2518-25361245/4220
M40*1.5MGB40-2518-25401550/5210
MGB40-3126-31401550/5210
M50*1.5MGB50-3225-32501562/6210
MGB50-4130-41501562/6210
M63*1.5MGB63-3829-38631875/6510
MGB63-4535-45631875/6510
PG
螺牙规格规格电缆范围螺纹外径螺纹长度扳手径包装
PG7PGB7S-31-312.5817/1550
PGB7S-63-6.512.5817/1550
PGB7-53-5.512.5817/1950
PGB7-84-812.5817/1950
PG9PGB9-5.53-5.515.2822/1950
PGB9-84-815.2822/1950
PG11PGB11-73-718.61024/2250
PGB11-106-1018.61024/2250
PGB11L-73-718.61524/2250
PGB11L-106-1018.61524/2250
PG13.5PGB13.5-95-920.41027/2450
PGB13.5-12.57-12.520.41027/2450
PG16PGB16-115-1122.510.830/2750
PGB16-148-1422.510.830/2750
PG19PGB19-115-11241130/2750
PGB19-148-14241130/2750
PG21PGB21-137-1328.31236/3350
PGB21-1812-1828.31236/3350
PG25PGB25-2014-20301336/3750
PG29PGB29-17.513-17.5371246/4120
PGB29-2517-25371246/4120
PG36PGB36-25.517-25.5471557/5210
PGB36-3124-32471557/5210
PG42PGB42-3225-32541564/6210
PGB42-4131-41541564/6210
PG48PGB48-3829-3859.318.270/6510
PGB48-4535-4559.318.270/6510
NPT
螺牙规格规格电缆范围螺纹外径螺纹长度扳手径包装
G(PF)1/4"GB1/4-53-5.513.1578.519/1950
GB1/4-84-813.1578.519/1950
G(PF)3/8"GB3/8-73-716.6621022/2250
GB3/8-105-1016.6621022/2250
G(PF)1/2"GB1/2-95-920.9551027/2450
GB1/2-12.56-12.520.9551027/2450
G(PF)3/4"GB3/4-137-1326.4411236/3350
GB3/4-1813-1826.4411236/3350
G(PF)1"GB1-2115-2233.2491546/4120
GB1-2517-2533.2491546/4120
G(PF)1 1/4"GB1 1/4-25.517-25.541.911557/5210
GB1 1/4-3124-3141.911557/5210
G(PF)1 1/2"GB1 1/2-3225-32481560/6210
GB1 1/2-4130-41481560/6210
NPT1/4"NPTB1/4-5.53-5.513.1578.51950
NPTB1/4-84-813.1578.51950
NPT3/8"NPTB3/8-73-716.662102250
NPTB3/8-106-1016.662102250
NPT1/2"NPTB1/2-95-920.955102450
NPTB1/2-136-12.520.955102450
NPT3/4"NPTB3/4-137-1326.441153350
NPTB3/4-1812-1826.441153350
NPT1"NPTB1-2215-2233.249154120
NPTB1-2517-2533.249154120
NPT1 1/4"NPT1 1/4-25.517-25.541.91155220
NPT1 1/4-3124-3141.91155220

比较: A (分体) & B (连体)型

1.常规环境下的安装时间:A型:10-15秒;B型 5-10秒
2.防护等级:IP68-10
3.A:防水等级100分,抗拉力101分,适用于水深50米拉伸强度的应用。
   B:防水等级100分,抗拉力101分,适用于水深超过50米拉伸强度的应用。
4.A(分体)和B(连体)型的安装都十分的方便。A型更多地被应用于需要用到多孔、开口式内芯的电缆接头的工程项目中。

如何正确选择螺牙类型?

1.首先确定安装面板的孔径,并确定其是否属于攻牙孔。
2.对照技术参数表找到匹配的螺牙型号(如:M、PG、NPT、G螺牙)。
3.如果安装面板没有攻牙孔,那么只需要确定孔径即可。
4.加长款螺纹适用于厚的安装面板。

常见问题

1.问:有UL认证吗?
答:我们有成品UL认证的,也有原材料UL(尼龙PA66制成防火等级UL94V-2)。您可以根据需求选择需要的那款。
2.问:使用寿命是多久?
答:常规环境下10年以上。
3.问:交货期多久?
答:常规型号基本有库存,可以随时发货,量大基本3-7个工作日可发货。
4.问:可以定制接头和包装吗?
答:可以。
